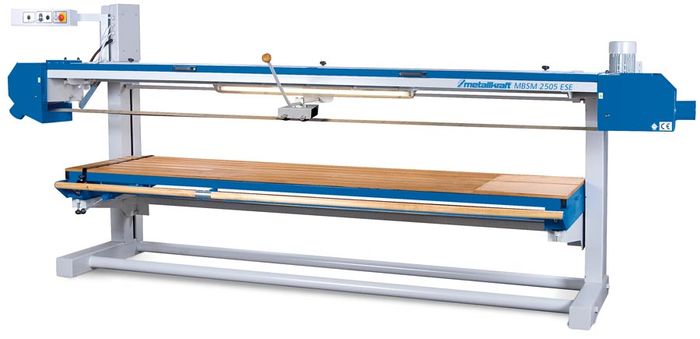

MBSM ESE – Long belt grinding machine with pivoting grinding unit for surface grinding
and edge grinding of long workpieces

  • For use in the metalworking industry for grinding, structuring and polishing tasks,especially with stainless steel
  • 225 mm, balanced belt rollers for optimum,low-vibration drive action
  • Continuously variable band speed 4.5 – 27 m/s thanks to frequency inverter
  • With electrical table height adjustment
  • With fold-up table, drawer grinding unit and integrated work table lighting
  • Easy action grinding table also under load
  • Easy adjustment of sanding belt
  • Roller grinding shoe for less annealing discolouration during grinding
  • CW/CCW sense of direction as standard
