OPTIturn TM 4010 / TM 4010D

  • OPTIturn TM 4010 / TM 4010D

    Leading and feed spindle lathes impressive by stable design and easy handling.
    TM 4010D with digital position display DPA 21

    • Hardened and grinded z-axis guideway
    • Spindle collet Camlock DIN ISO 702-2 no. 5
    • Guaranteed concentricity of spindle nose better than 0.015 mm
    • Gears and shafts tempered and ground, running in oil bath on
    • precision bearings
    • Tailstock with hardened and polished quill

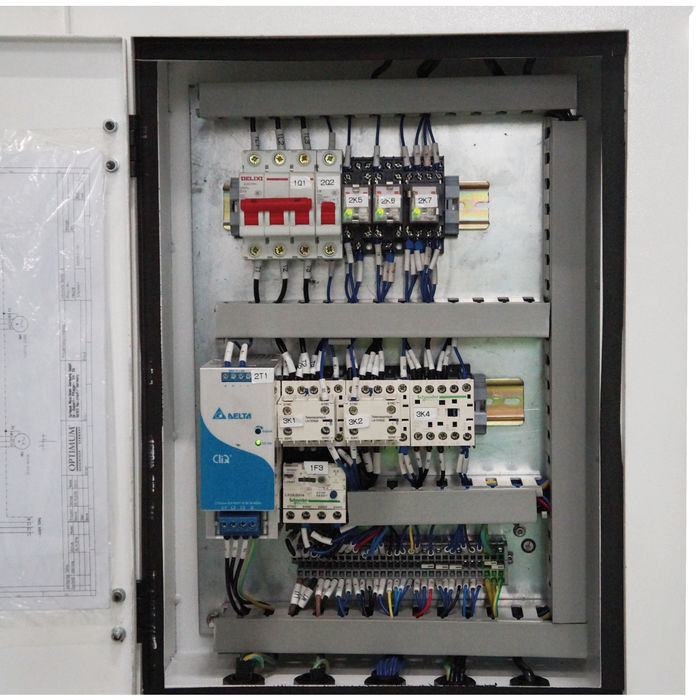

    • DC 24 Volt electrical system
    • All gears of the feed gear of steel, hardened and ground, shafts on needle bearings all components are lubricated in an oil bath
    • Right-handed/left-handed rotation switchable on bed slide
    • Safety hand wheels with release function in the X and Z axis
    • Emergency stop push button
    • Perfectly rounding Main spindle ensures high load bearing capacity thanks to mounted precision tapered roller bearings
    • LED machine lamp in chip guard
    • Brakemotor XThree-jaw lathe chuck Ø 200 mm, no. 5 standard scope of delivery
    • User-friendly membrane keyboard
    • Dual-channel right-left switch, tested according to EN 23125

    TM 4010D
    additionally with digital position display DPA21
