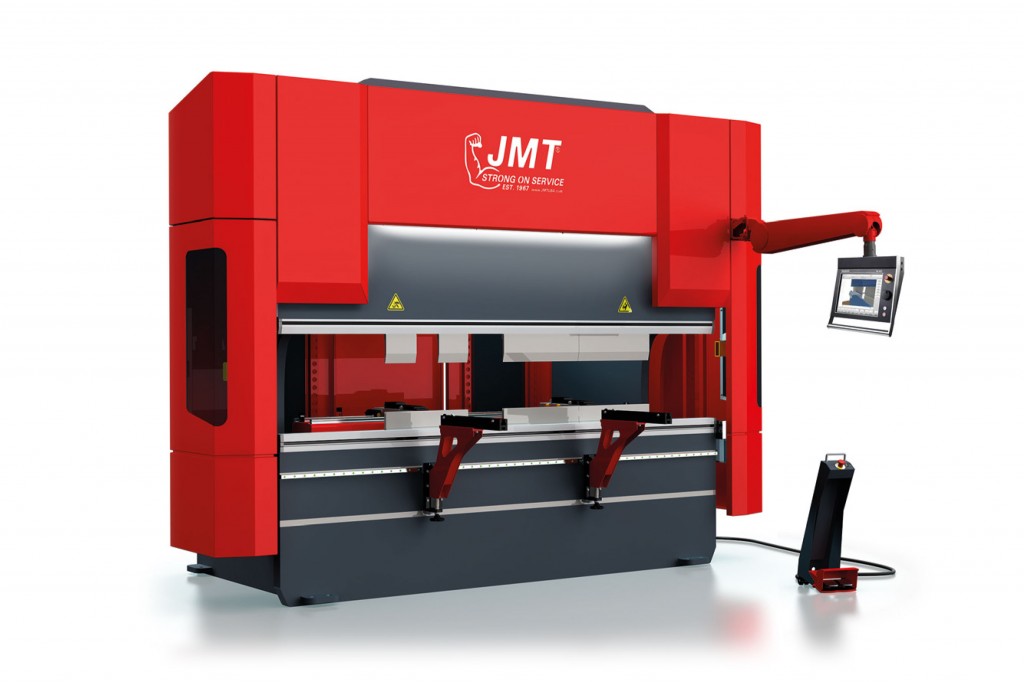

JMT JM-S Press Brake Series

  • JMT JM-S Press Brake Series

    STANDARDS
    – ST44 Rigid Mono Block Steel Frame
    – Synchronized Dual Cylinders
    – Hoerbiger Hydraulic System
    – Givi Misure Linear Measurement System
    – Up and Down Moveable Control Unit Arm
    – Delem 66T or Cybelec Modeva 15T
    – Double Guided X, R Axis Servo Motorized Back Gauge
    – CNC Motorized Crowning System
    – JMT Top & Bottom Tool Clamps
    – Sliding & Height Adjustable Front Arms

    OPTIONS
    – European, American, Wila or Wilson Tools
    – Laser Safety Device
    – Special Strokes and Throat Depths
    – Tandem Preparation
    – Oil Cooling and Heating Systems
    – Delem DA69T Control Unit
    – (X,R,Z1-Z2), (X1-X2,R,Z1-Z2), (X1-X2,R1-R2,Z1-Z2)
    – Special Finger Blocks
    – Motorized Lubrication System
    – Parking Area for support arms
    – Pneumatic or Motorized Bottom Tool Positioning System
    – Automatic Loading & Unloading
    – Sheet Following Systems

    MACHINE FRAME
    JM-S & JM-R series press brake features a rigid mono-block frame for minimum deflection under the load. The frame steels are German origin,ultrasonic controlled & ST-44 material. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy,. All referance surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time.
