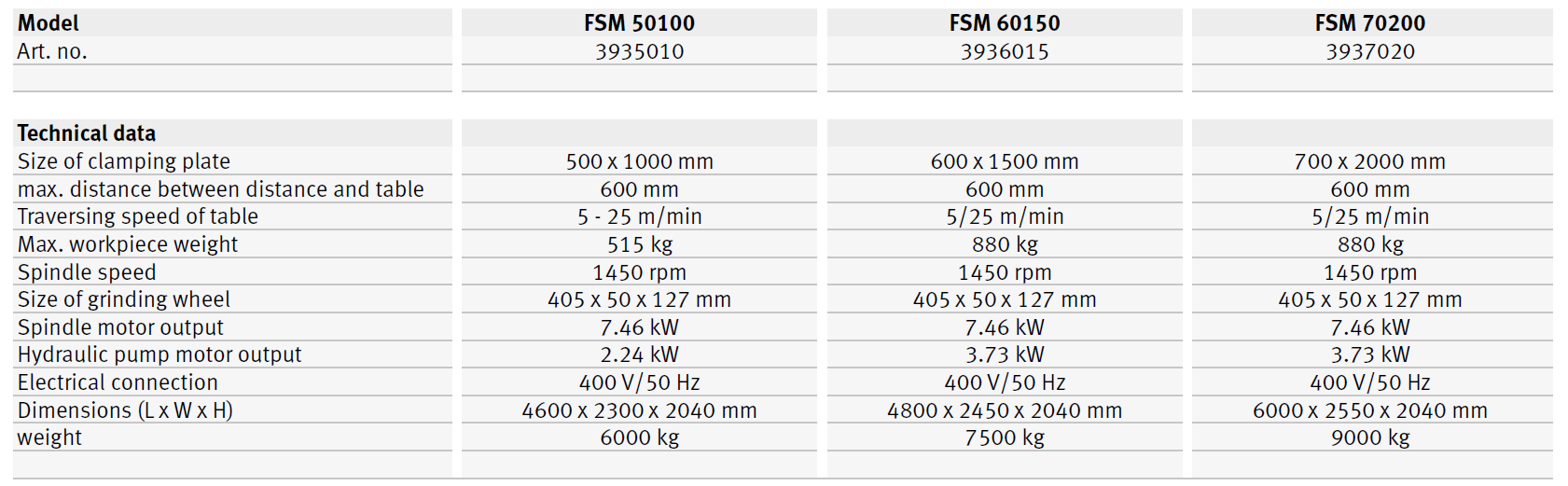

FSM 50100 / FSM 60150 / FSM 70200

FSM – Precision grinding machines with NC controlled vertical feed

For precision surface grinding in the industrial sector
Maximum rigidity and stability thanks to stress-free re-hardened and hardened cast iron construction
IP65-protected halogen lighting
With automatic central lubrication for all slides and spindles
Electromagnetic clamping plate for fixing the workpiece incl. Automatic demagnetization function
High quality spindle with precision tapered roller bearings (concentricity 2 μm)
Hand-scraped and "Turcite-B" coated V-flat guides guarantee extremely smooth, low-friction movement and maximum precision
Second grinding wheel flange

MICRO miller MF 70

MICRO miller MF 70
KAG 4

KAG 4
ST 16k20

Lathes ST 16k20 series
MICROMOT drill stand MB 140/S

Throat capacity (column inside to centre of tool)
